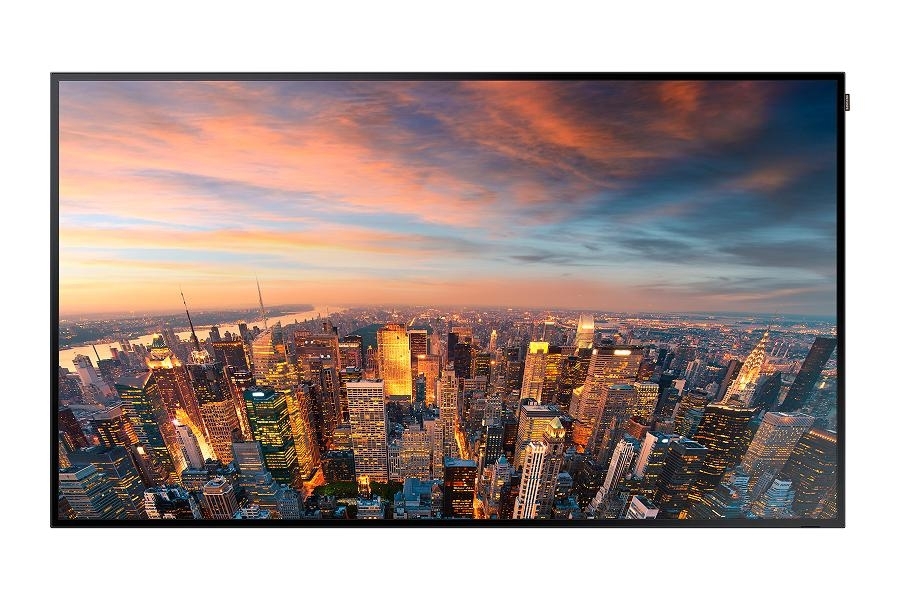

Panel
Diagonal Size82"
Type120Hz E-LED BLU
Resolution1920*1080 (Full HD)
Pixel Pitch(mm)0.3135(H) x 0.9405 (V)
Active Display Area(mm)1805.76(H) x 1015.74(V)
Brightness(Typ.)500 nit
Contrast Ratio5000:1
Viewing Angle(H/V)178:178
Response Time(G-to-G)8ms
Display Colors10bit Dithering - 1.07Billion
Color Gamut68%
Haze2%
Display
Dynamic C/R50,000:1
H-Scanning Frequency30 ~ 81kHZ
V-Scanning Frequency48 ~ 75HZ
Maximum Pixel Frequency148.5MHz
Sound
Speaker TypeBuilt in Speaker(10W + 10W)
Connectivity
Input
RGBAnalog D-SUB, DVI-D, Display Port 1.2
VideoHDMI1, HDMI2, HDMI3, Component(CVBS Common)
AudioStereo mini Jack
UsbUSB 2.0 x 2
Output
RGBDP1.2(Loop-out)
VideoN/A
AudioStereo mini Jack
Power OutN/A
External ControlRS232C(in/out) thru stereo jack, RJ45
External SensorIR, Ambient Light
TunerYes(only for NA/KR)
Power
TypeInternal
Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]363.0
Typical[W/h](W/W)308, (US)138, (KR)308
BTU(Max)1237.83
Sleep modeless than 0.5W (TBD)
Off modeless than 0.5W (TBD)
Mechanical Specification
Dimension (mm)
Set1854.2 X 1064.2 X 48.5 (89.3 Handle)
Package2002 X 1238 X 472
Weight (kg)
Set48.5
Package63
VESA Mount (mm)600*400mm
Protection GlassN/A
Stand TypeFoot Stand (Optional)
Media Player Option TypeEmbbeded, SBB(Attachable), PIM(Attachable)
Bezel Width (mm)20.2mm
Operation
Recommended Usage Hours24/7
Operating TemperatureN/A ℃ ~ N/A ℃
Humidity10.0 % ~ 80.0 %
Feature
Key FeaturesSlim & Light LFD with Built-in MagicInfo Player S2, SSSP 2.0
Special FeaturesH/W: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot
S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support),
Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, MagicPresenter
Internal Player
ProcessorCortex-A9 1GHz Quad Core CPU
On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
Clock Speed1GHz CPU Quad
Main Memory Interface1.5GB Dual 48bit DDR3-933 (1866MHz)
Graphics2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
Storage (FDM)4GB (2GB Occupied by O/S, 2GB Available)
MultimediaVideo Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
IO PortsUSB 2.0 x 2
Operating SystemSamsung Proprietary OS(VDLinux)
Certification
SafetyCB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) : cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE
EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
EnvironmentN/A
Accessory
IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, COVER-JACK
Optional
StandSTN-L7585F
MountWMN8200SD
SpecialtyN/A
Media Player
Media Player
Media PlayerSBB(Optional), PIM(Optional)
